NuPhy Gateron Low-profile 3.0 Switches
General Specifications
|
Specification |
Details |
|---|---|
|
Product Name |
Gateron Low-Profile 3.0 Switches |
|
Switch Options |
Red Nano / Brown Nano / Silver Nano / Blush Nano |
|
Switch Count |
36 switches per pack |
|
Mounting Pins |
5-pin |
|
Factory Lubed |
Yes |
|
Compatible Keyboards |
NuPhy Kick75, Air75 V3 |
|
Warranty |
1 Year |
Â

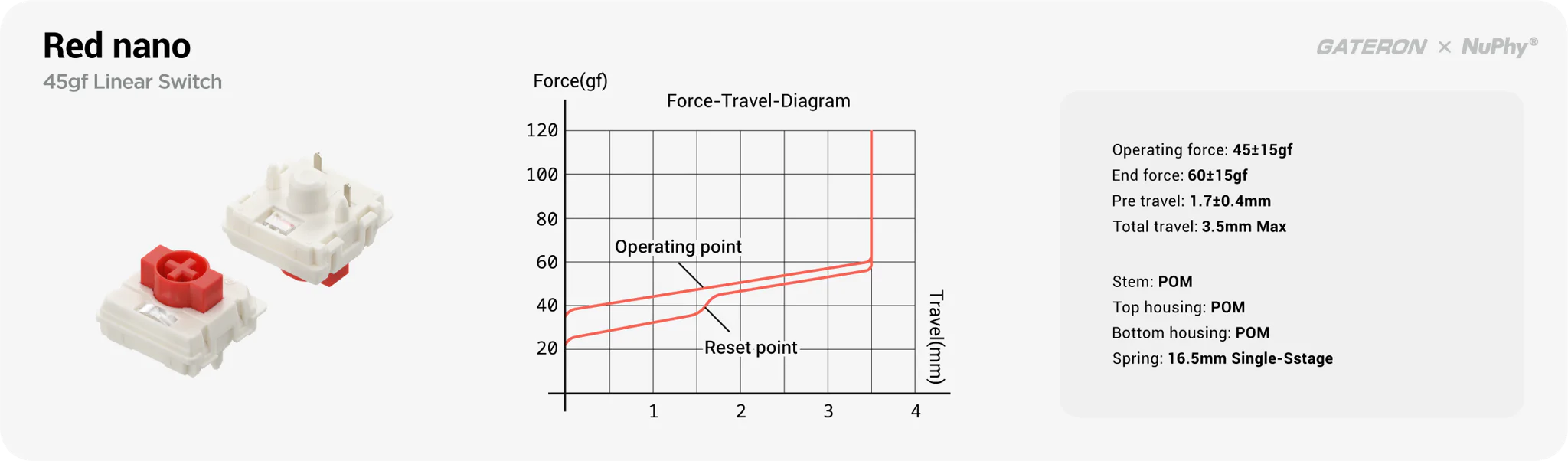

Red Nano (Linear)
|
Specification |
Details |
|---|---|
|
Switch Type |
Linear |
|
Pre-Travel |
1.7 ± 0.4 mm |
|
Total Travel |
3.5 mm (max) |
|
Operating Force |
45 ± 15 gf |
|
End Force |
60 ± 5 gf |
|
Stem Material |
POM |
|
Top Housing |
POM |
|
Bottom Housing |
POM |
|
Spring |
16.5 mm single-stage spring |
Â

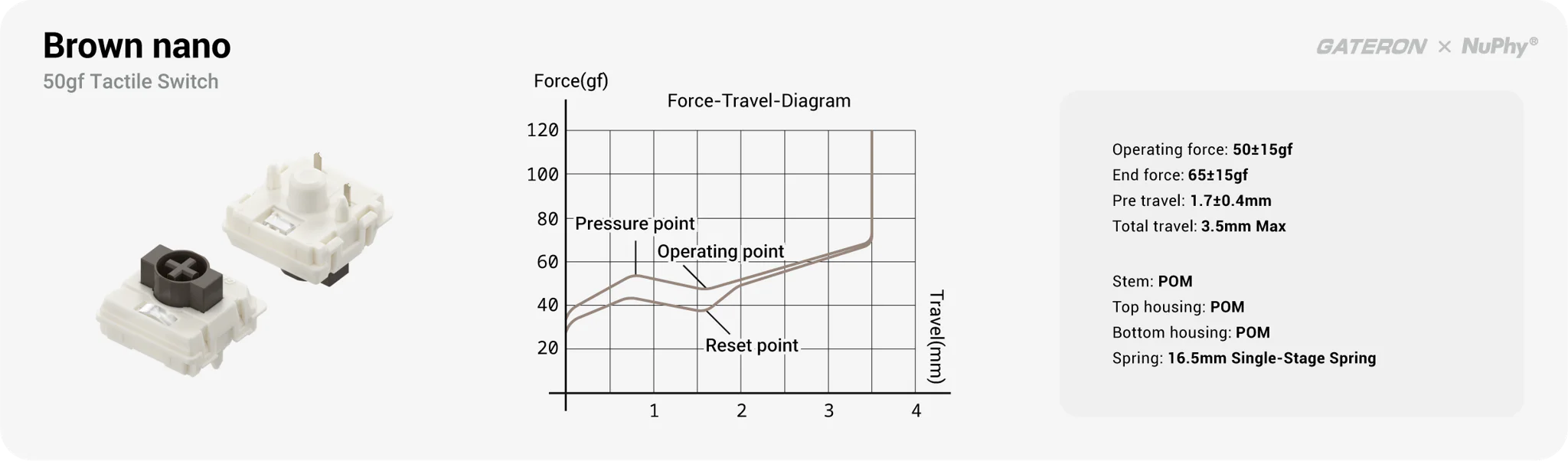

Brown Nano (Tactile)
|
Specification |
Details |
|---|---|
|
Switch Type |
Tactile |
|
Pre-Travel |
1.7 ± 0.4 mm |
|
Total Travel |
3.5 mm (max) |
|
Operating Force |
50 ± 15 gf |
|
End Force |
65 ± 5 gf |
|
Stem Material |
POM |
|
Top Housing |
POM |
|
Bottom Housing |
POM |
|
Spring |
16.5 mm single-stage spring |
Â

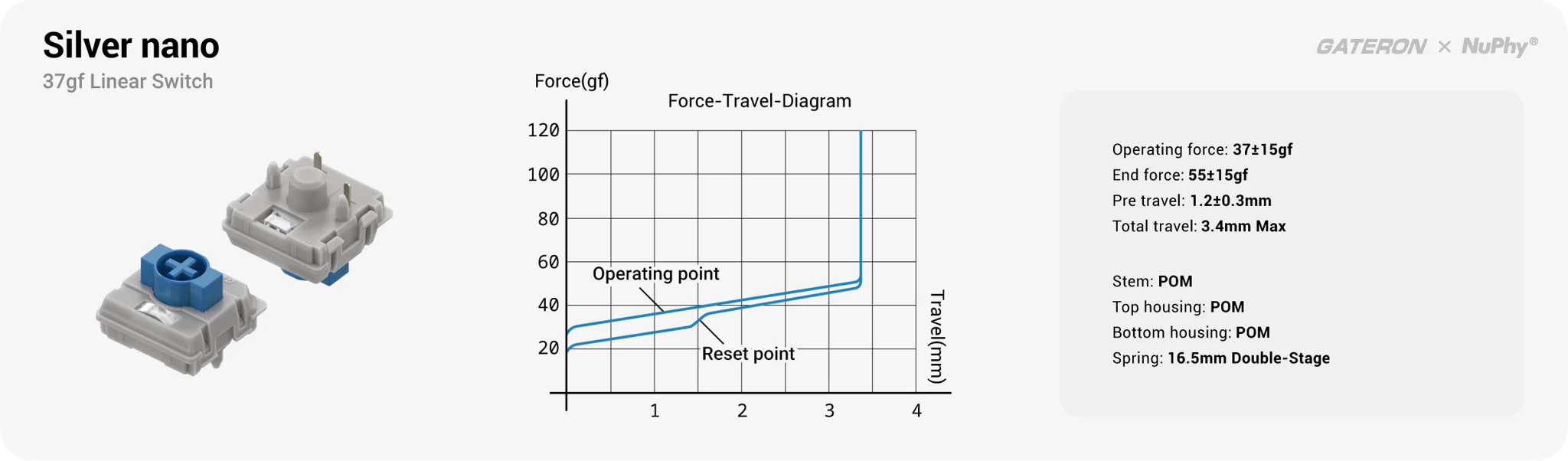

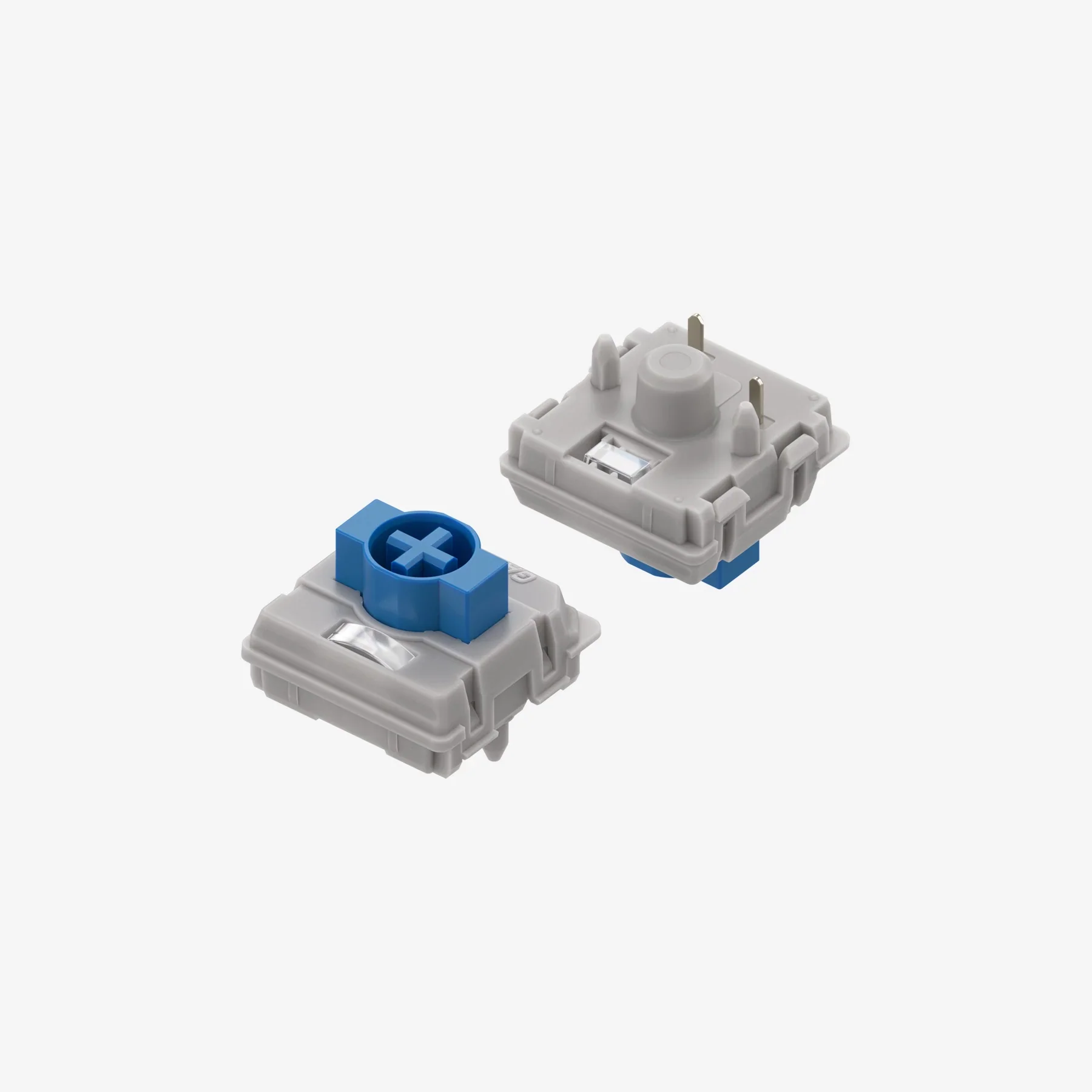

Silver Nano (Linear – Speed)
|
Specification |
Details |
|---|---|
|
Switch Type |
Linear |
|
Pre-Travel |
1.2 ± 0.3 mm |
|
Total Travel |
3.4 mm (max) |
|
Operating Force |
37 ± 15 gf |
|
End Force |
55 ± 5 gf |
|
Stem Material |
POM |
|
Top Housing |
POM |
|
Bottom Housing |
POM |
|
Spring |
16.5 mm single-stage spring |
Â

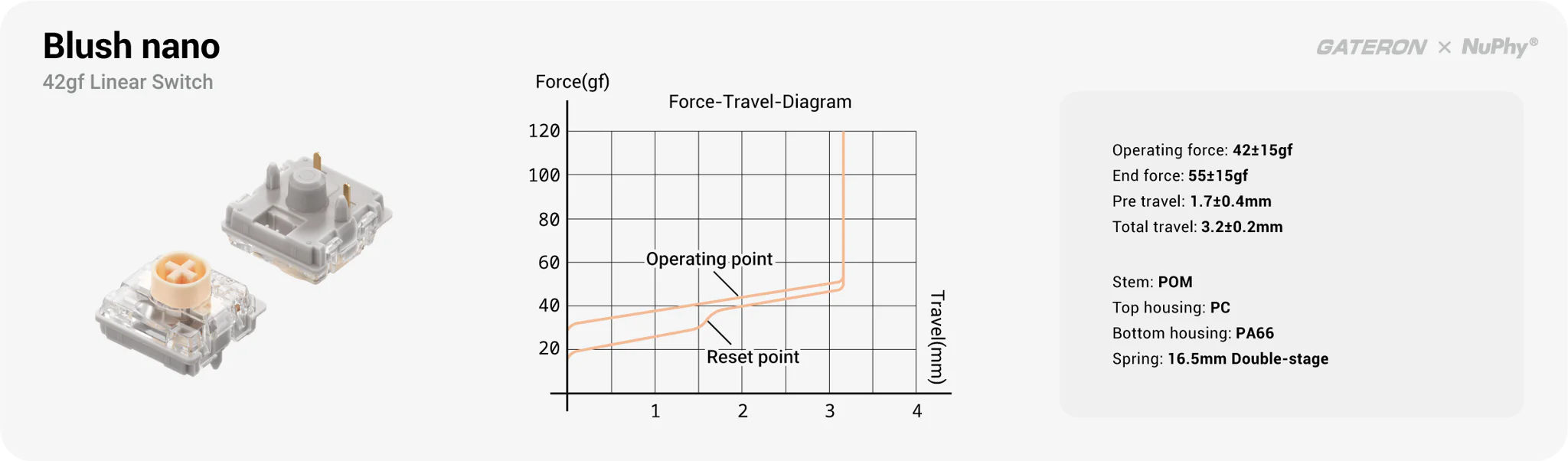

Blush Nano (Linear)
|
Specification |
Details |
|---|---|
|
Switch Type |
Linear |
|
Pre-Travel |
1.7 ± 0.4 mm |
|
Total Travel |
3.2 ± 0.2 mm |
|
Operating Force |
42 ± 15 gf |
|
End Force |
55 ± 5 gf |
|
Stem Material |
POM |
|
Top Housing |
PC |
|
Bottom Housing |
Nylon PA66 |
|
Spring |
16.5 mm single-stage spring |
